Intro

Engineering safety & stability

Redflex, a global provider of traffic management solutions, wanted to develop an unmanned deployable speed camera for the US market.

Trike was engaged to develop a camera base unit which housed Redflex’s camera technology and could be quickly and safely deployed from a flat bed truck. The unit would support and power the camera technology for extended periods, across a range of roadside conditions.

Our team developed multiple visual concepts, full detailed design and engineering of the preferred concept and two full functioning prototypes for verification testing.

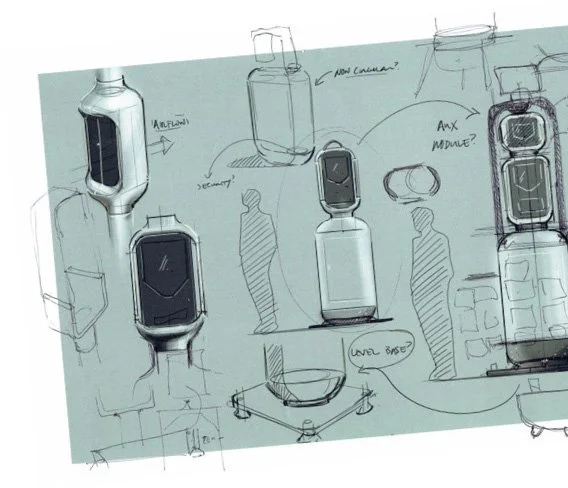

EXPLORATION & DESIGN LANGUAGE

Key principles & form

The design concepts for this product allowed Redflex to engage effectively with their key internal sales and marketing team.

Feedback guided the concept selection and lead to a more friendly form to the product with a visual language that communicated its safety function.



ENGINEERING & TECHNICAL DEVELOPMENT

Robust & reliable

The instrument included some unique engineering challenges.

These included: battery and fuel cell power alternatives (creating a product mass > 1 tonne), vandal proofing for abusive environments, auto levelling of the unit on uneven ground and a retractable mast to deploy the camera system 3.8m above the ground.
